KOEL / 4R - 1040 T dengan Turbocharger Charged

• Powered by 76 HP turbo charged KOEL / 4R - 1040 engine
• Gear driven more efficient water pump eliminates belt requirement & risk.
• Regionalized cooling system design to operate in dusty & high ambient temperature environment.
• Very stable engine mountings.
• 128 Liters diesel tank capacity provides uninterrupted fuel supply for long hours of engine run without refill.

Hidraulik

The Cat 424B is fitted with unique technology, Variable Displacement Piston Pump, which is an efficient system and has longer life.

• The hydraulic system works only when it senses demand from the implement. When there is no demand, there is no flow.
• The system flow and demand are met at required time ensuring smooth and controlled operation.
• The engine torque is best matched with system demand.
• The non-continuous flow of hydraulic oil through valves and circuits, when there is no demand, ensures less parasitic load on engine.
• The enhanced life of the hydraulic oil improves the component life, reduces the down time and lowers the operating cost with reduced oil consumption.
• Refill capacity of 424B hydraulic system is 71 liters only when compared to 130 litters of equivalent competition machine. Less oil replacement cost.
• The Anti-Stall feature prevents engine from stalling under high hydraulic loads at low engine speeds.

Kabin

• Ergonomically positioned footsteps and wider doors on either side make it easier for the operator to enter into the cabin.
• More spacious cabin with extra seating arrangement accommodates helpers.
• Separate tool and utility boxes provide more storage space.
• Metallic cabin roof provides excellent impact resistance.
• Customized metallic stronger fenders.
• Commercially available H-beads on Windscreen and Door glasses for ease of service.
• Better-ventilated design with added tiltable fan brings excellent thermal comfort to the operator.
• Provision for audio/music system benefits operator relaxation.
• Large glass area in cabin provides excellent visibility.
• Partially protruded laminated glass rear opening window acts as rain shield.
• White background glazed type gauges for better visibility during night operation.
• Ergonomically placed operating levers for safe and efficient operation.

Transmisi

The Caterpillar Power Shuttle transmission provides four speeds forward and reverse. Full synchromesh gears and hydraulically shifted forward and reverse shuttle clutches allow direction and travel speed to be changed on-the-go. A neutral start provision prevents starting while the shuttle is engaged.

Gandar Depan

More reliable and durable fabricated box section high strength Eliot type front axle. Life lubricated pivot bearing reduces maintenance risk and increases uptime of machine. Fully hydrostatic power steering makes maneuverability much easier. Shorter turning circle reduces cycle time and increases productivity.

Gandar Belakang

Heavy-duty rear axle with self-adjusting inboard brakes. Brake discs are specially designed for extend service life. Periodic inspection of brake disc condition possible due to provision of inspection plugs.

Loader

• Durable and reliable lift arm design with thicker circular torque tube, improved side and stiffener plate profiles and stronger welded joints, provide excellent resistance to twisting loads.
• Divergent single tilt lift arm provides excellent forward visibility.
• Lesser number linkages and lubrication points increase machine uptime and reduce maintenance cost.
• Return to dig system repositions loader bucket to dig position after dumping. This improves operator comfort and efficiency resulting higher production.
• Deflector plates on both arms protect cabin glasses from particle hit during loading application.
• Lower turning circle results in less cycle time & more production during

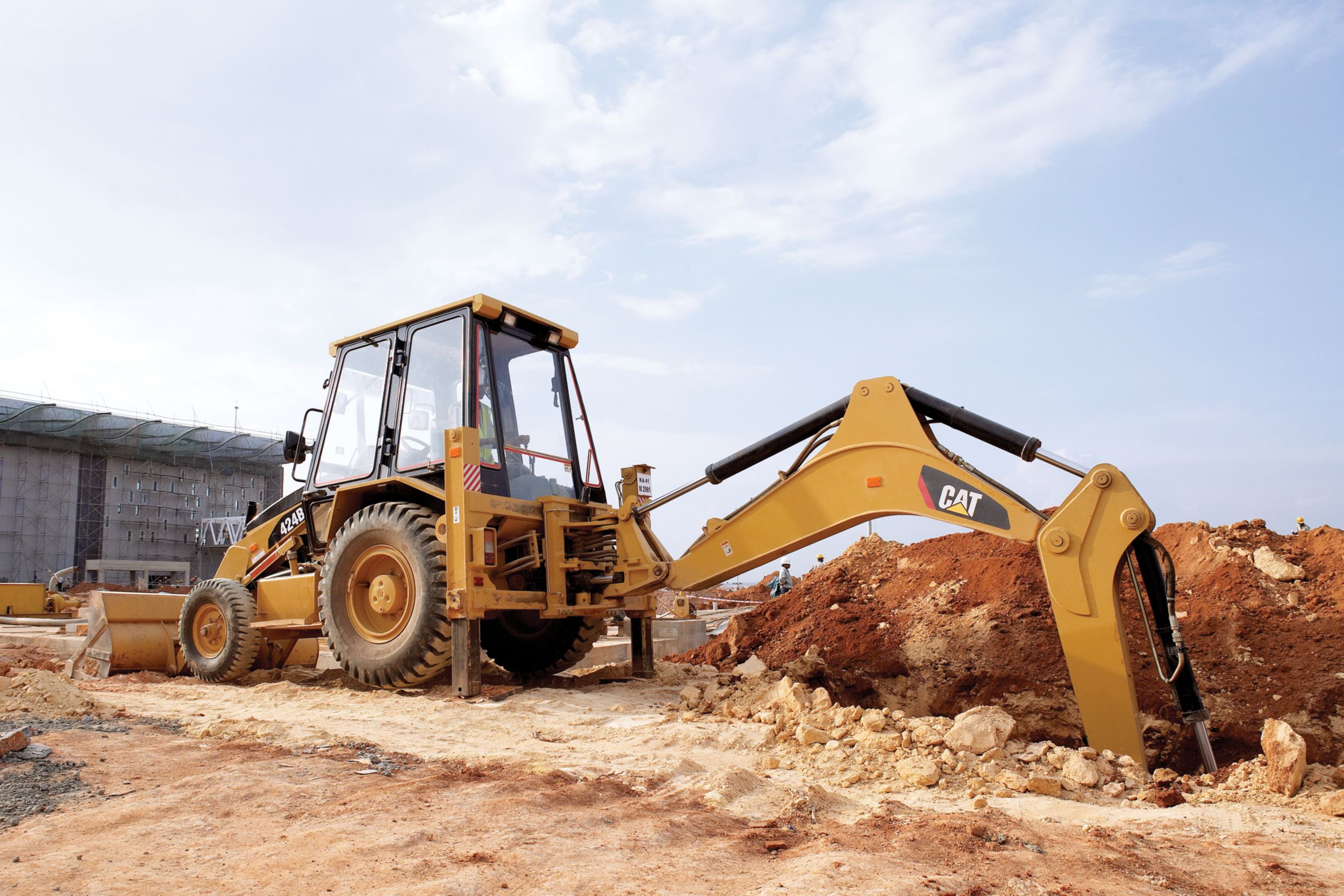

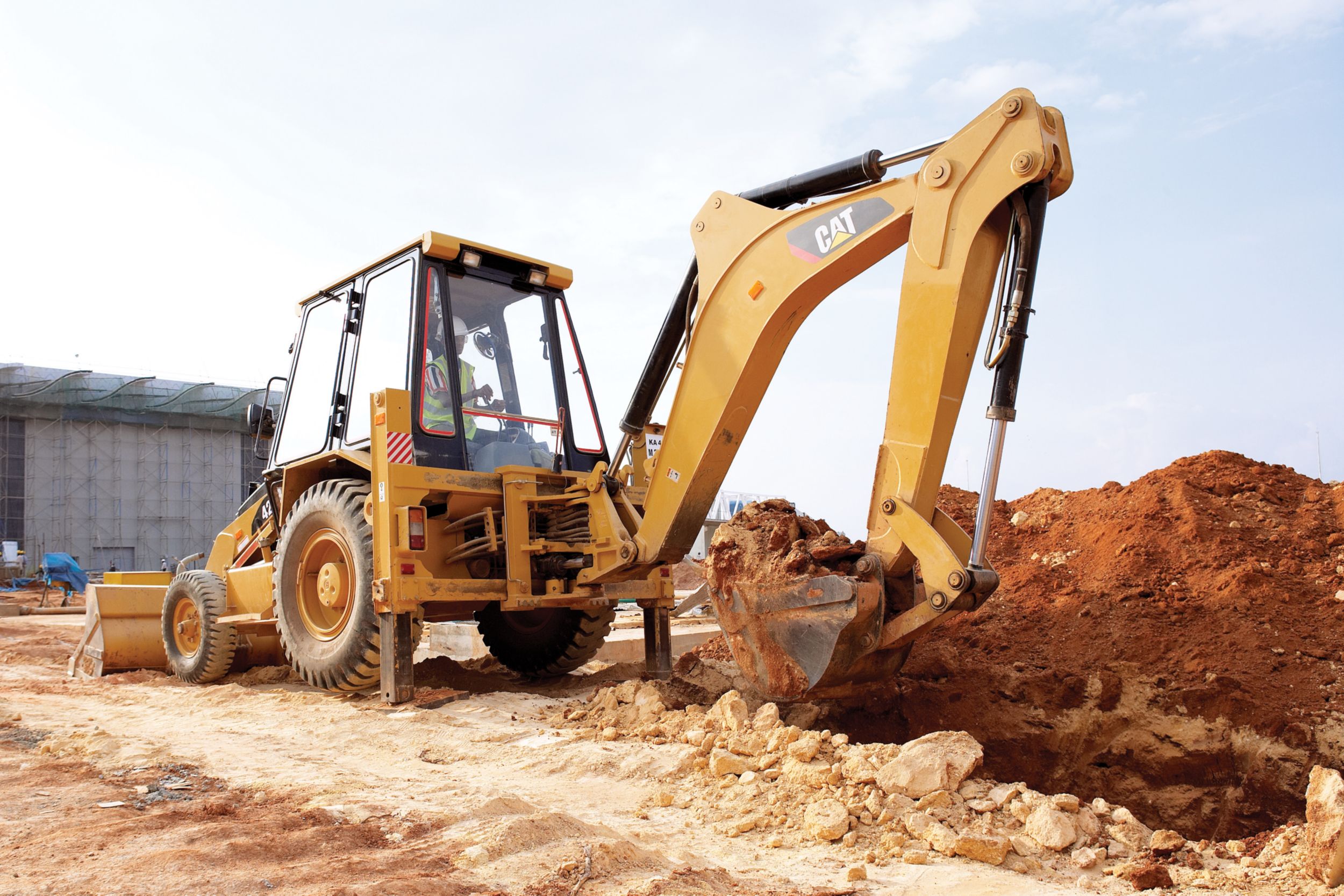

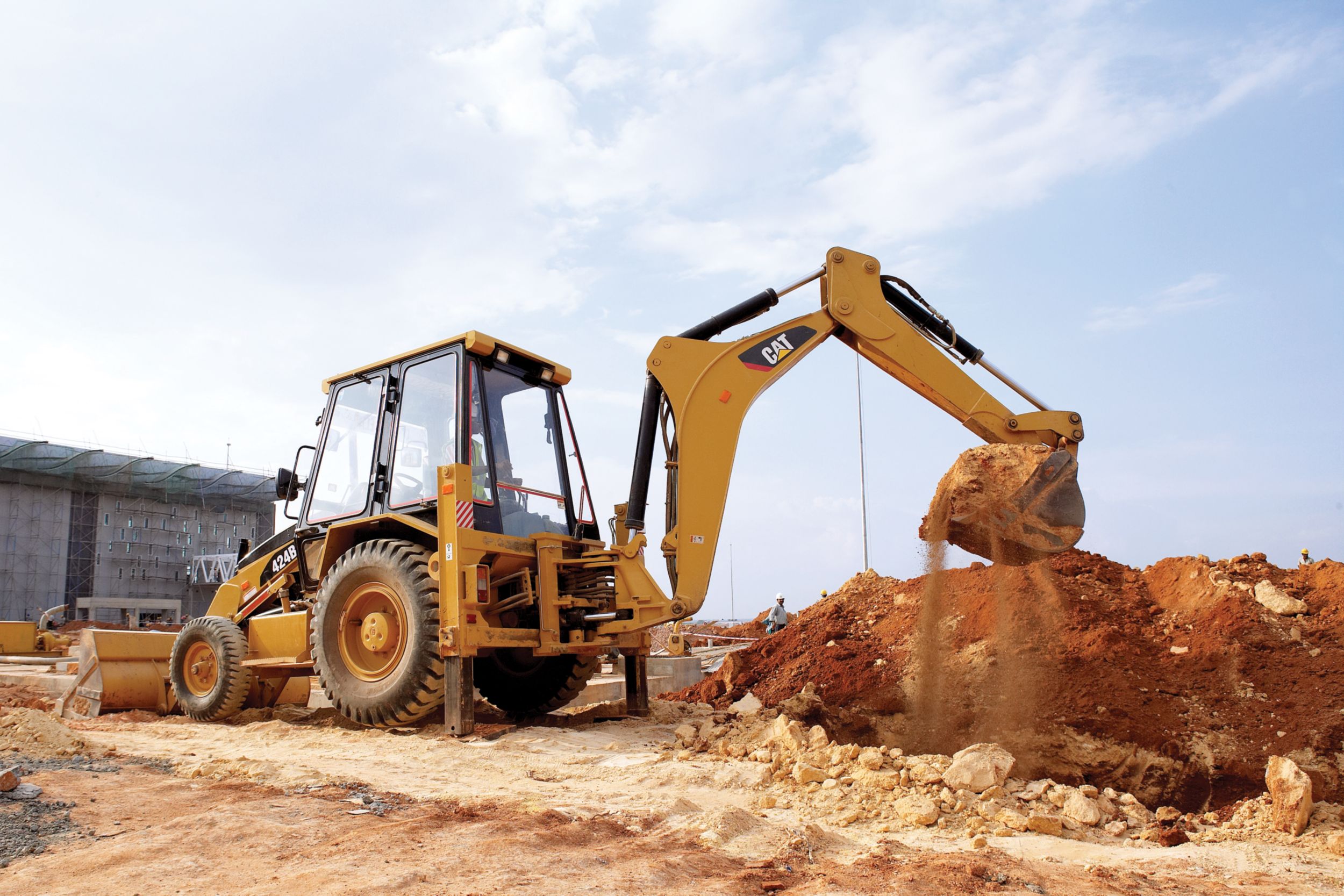

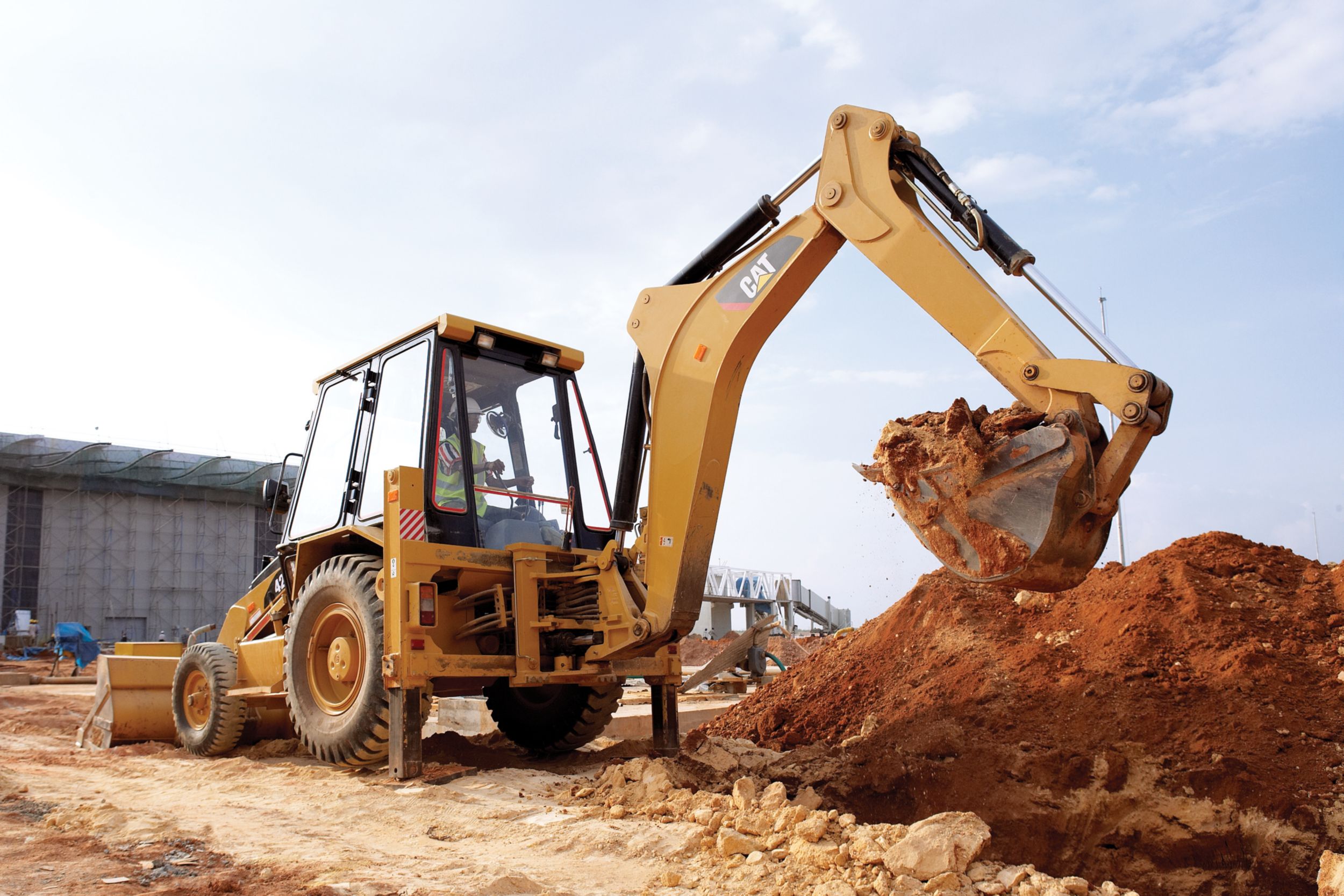

Backhoe

• Exclusive Cat excavator style narrow boom design provides excellent operator visibility and more reach over obstacles.
• Excavator type “+” pattern operating levers reduce operator fatigue and increases efficiency.
• 205-degree bucket rotation along with higher digging depth results in higher productivity.
• Reliable and durable heavy-duty boom and stick design through stronger joints.
• Strong and reliable slide frame design through thick vertical stiffener plate.
• Flat face H-frame provides perfect clamping for slide frame.
• Higher slide frame travel coupled with more reach covers more working area.
• Pioneered twin slew rams for quick and fast swing operation.
• Operator can set any engine rpm based on application.

Maintenance and Service Points

• All check and fill points are grouped at left hand side of the machine with flip open hood for easy access and service.
• Fewer lubrication points on loader and backhoe ends result in more machine uptime and less maintenance cost.
• Cat exclusive life lubricated driveline and front axle pivot.
• Battery box is located at right side and is easily accessible from ground level.
• Spin on hydraulic amd transmission filters help ease of service and protect from oil contamination.
• Non-metallic and non-corrosive hydraulic oil tank for efficient system operation.
• Conveniently located indicator to show dual filter air cleaner condition.

Backhoe Work Tools

• Standard Duty Buckets
• Heavy Duty Buckets
• Ditch Cleaning Bucket
• Ripper Tooth
• Hydraulic Hammer

Loader Work Tools

• General Purpose Bucket
• Multi Purpose Bucket

Sistem Start

The 424B has a conventional 12-Volt electrical system. The starting system incorporates a key start system.

Sistem Monitoring

Included in the monitoring system are monitor lights and an audible alarm that warns the operator of low engine oil pressure, high engine coolant temperature, improper alternator function and low brake fluid. A monitoring system test occurs on startup. A monitor lamp warns the operator when the parking brake is applied with an audible alarm sounding when a travel direction is selected. Hazard flashers and a failed bulb warning system are standard. There are two turn signal indicators located on the dash.

Pengukur

Located on the side console are fuel level, engine coolant temperature and converter temperature gauges. An electric service meter, tachometer and speedometer are standard.

Harnesses and Wiring

Cat harnesses are modular and the wires are color coded and numbered to facilitate to proper installation, assembly and servicing. Sealed connectors, terminals and locking blade connectors are used as harness terminations. Electrical connectors provide a positive locking system and rubber seals to keep moisture out.

Dukungan Produk

Anda dapat menemukan hampir semua suku cadang di gerai suku cadang dealer. Dealer Cat menggunakan jaringan komputer yang terhubung ke seluruh dunia untuk mencari stok suku cadang guna meminimalkan waktu henti.

Pemilihan Alat Berat

Lakukan perbandingan terperinci terhadap alat berat yang sedang dipertimbangkan sebelum melakukan pembelian. Dealer Cat dapat memperkirakan umur komponen, biaya perawatan preventif dan biaya kerugian produksi sesungguhnya.

Pembelian

Perhatikan tidak hanya harga awal. Pertimbangkan opsi pembiayaan yang tersedia serta biaya pengoperasian sehari-hari. Perhatikan layanan di dealer yang dapat disertakan ke dalam biaya alat berat guna mencapai biaya kepemilikan dan pengoperasian peralatan yang lebih rendah dalam jangka panjang.

Perjanjian Dukungan Pelanggan

Dealer Cat menyediakan berbagai perjanjian dukungan produk, dan bekerja bersama pelanggan untuk mengembangkan sebuah rencana yang paling sesuai dengan kebutuhan yang spesifik. Rencana ini dapat mencakup keseluruhan alat berat, termasuk attachment, guna membantu melindungi investasi pelanggan.

Pengoperasian

Memperbaiki teknik pengoperasian dapat meningkatkan keuntungan Anda. Dealer Cat Anda memiliki kaset video pelatihan, dokumen, dan hal-hal lain guna membantu Anda meningkatkan produktivitas.

Servis Perawatan

Choose from your dealers range if maintenance services when you purchase your machine. Program opsi perbaikan menjamin biaya perbaikan di awal. Program diagnostik seperti S·O·SSM dan Pengambilan Sampel Cairan Pendingin serta Analisis Teknik membantu Anda menghindari perbaikan yang tidak terencana.

Penggantian

Perbaiki, rekondisi, atau ganti? Dealer Cat dapat membantu mengevaluasi biaya yang diperlukan sehingga Anda dapat menentukan pilihan yang tepat.
